Method for querying document status and metadata (GetDocument)

This method allows you to query a document's information using the POST GetDocument service.

Using this method, you obtain all the document's information: document IDs, issuance and signing dates, notes, issuer and receiver data, status, etc.

To connect to this functionality, you must enter the URL according to the environment you want to use:

PRODUCCIÓNhttps://developers.gosocket.net/api/v1/Document/GetDocument

SANDBOXhttps://developers-sbx.gosocket.net/api/v1/Document/GetDocument

info

Keep the following in mind:

• The maximum date range for documents is one month.
• The API will respond with 10 documents per query.
• Enter the "ResultMaxItemCount" parameter to query up to 100 documents. For example, if you need to query 80 documents, you should enter: "ResultMaxItemCount": 80.
• The parameters (DateFrom and DateTo) used to indicate the period to query can be omitted in the sandbox environment. However, their use is mandatory, as indicated in this documentation.

---

How does the GetDocument method work?

To make the request, the method has the following parameters in JSON format with the following structure:

GetDocument (request)
Parameter	Type	Description	Allowed values
GlobalDocumentId	String	Document ID in Gosocket. Although this parameter is not mandatory, it speeds up the query when filled in.	36-character alphanumeric UUID xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
CountryDocumentId	String	Fiscal identifier of the document at the country level, also known as CUFE, CLAVE, UUID, ID	See table Country Document ID Structure
ExternalId	String	Document ID in the external system
Country*	String	Country code of the document's issuance	ar, bo, br, cl, co, cr, ec, gt, mx, pa, pe, py, do, sv, uy
DateFrom*	String	Issuance date (from); combining 2 or more years in the range is not allowed. Mandatory field, except when GlobalDocumetId is provided. This parameter filters by date, not by time.	yyyy-mm-dd
DateTo*	String	Issuance date (to); combining 2 or more years in the range is not allowed. Mandatory field, except when GlobalDocumetId is provided. This parameter filters by date, not by time.	yyyy-mm-dd
ReceivedDateFrom	String	Reception date (from); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
ReceivedDateTo	String	Reception date (to); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
SenderCode*	String	Issuer's Fiscal ID. Mandatory field. If not sent, the Unautorized Action / company not authorized error is issued	See table Fiscal ID Structure
ReceiverCode	String	Receiver's Fiscal ID	See table Fiscal ID Structure
DocumentTypeId	Integer	Document type code in Gosocket (invoice, note, etc.)	1, 2, 3, 4, …
Series	String	Document series
Number	String	Document folio
SeriesNumber	String	Document series and folio concatenated
TwoCheckStatusSender	Integer	Issuer statuses with additional Smart Supply validations	0: pending 2: sent 3: accepted 4: rejected
TwoCheckStatusReceiver	Integer	Receiver statuses with additional Smart Supply validations	0: pending 2: sent 3: accepted 4: rejected
Has Offer	Boolean	Document offer status	True: Has offers False: Has no offers
OfferFinancialEntityCode	String	Tax ID of the company that made the offer	00000000-0
DocumentTagValues	String	Tags contained in the document	Example: "DocumentTagValues": { "AuthorityStatus": "2" }
ContainDocumentTagCode	Boolean	Indicator that the document contains the defined tag	True: the document contains the defined tag code. False: the document does not contain the defined tag code. Example: "ContainDocumentTagCode": { "AttRC": true }
ResultMaxItemCount	Integer	Number of query results; if a value above 100 is set, the system will cap it at 100 max.	1, 2, 3, 4, 5, 6, 7, 8, 9…100
ContinuationToken	String	Token that paginates the result if not all documents were returned in the previous query	Example: [{"compositeToken":{"token":null,"range":{"min":"05C1E0","max":"05C1E2"}},"orderByItems":[{"item":"2022-07-29T23:04:03.3120133Z"}],"rid":"2nsFAKt-OBYtwgQAAACACQ==","skipCount":0,"filter":null}]

*Required

Note: The parameters (DateFrom and DateTo) used to indicate the period to query can be omitted in the sandbox environment. However, their use is mandatory, as indicated in this manual.

---

Method request example

Note: Remember that before using the method, you must authenticate in the Authorization tab.

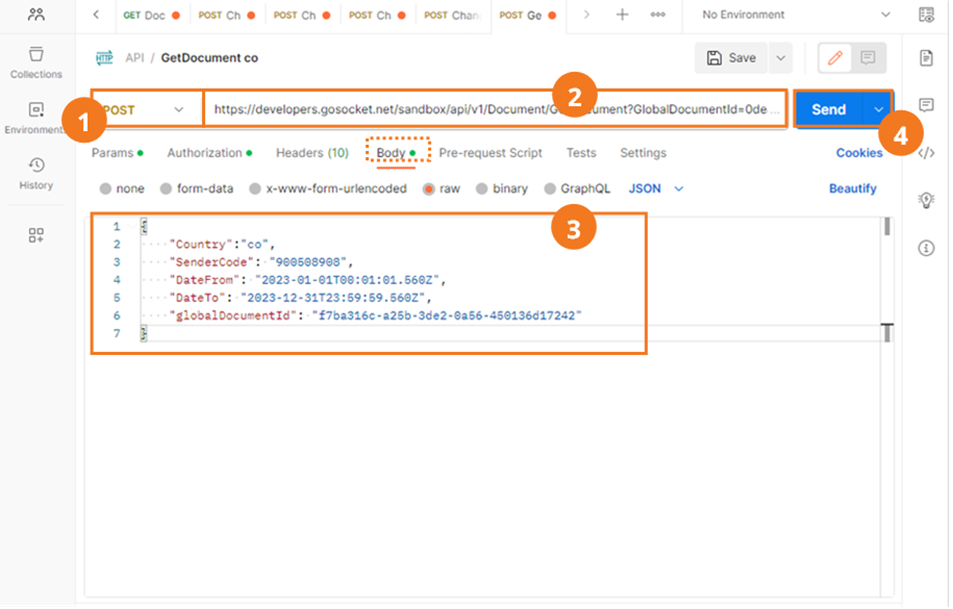

For this method we use Postman's Body tab.

1. Select the method type. In this case, you must select POST.
2. Enter the method URL.
3. Enter the parameters shown in the previous table with their corresponding values.
4. Press Send.

GetDocument (request)
Parameter	Type	Description	Allowed values
GlobalDocumentId	String	Document ID in Gosocket. Although this parameter is not mandatory, it speeds up the query when filled in.	36-character alphanumeric UUID xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
CountryDocumentId	String	Fiscal identifier of the document at the country level, also known as CUFE, CLAVE, UUID, ID	See table Country Document ID Structure
ExternalId	String	Document ID in the external system
Country*	String	Country code of the document's issuance	ar, bo, br, cl, co, cr, ec, gt, mx, pa, pe, py, do, sv, uy
DateFrom*	String	Issuance date (from); combining 2 or more years in the range is not allowed. Mandatory field, except when GlobalDocumetId is provided. This parameter filters by date, not by time.	yyyy-mm-dd
DateTo*	String	Issuance date (to); combining 2 or more years in the range is not allowed. Mandatory field, except when GlobalDocumetId is provided. This parameter filters by date, not by time.	yyyy-mm-dd
LastChangeFrom	String	Date of last change (from); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
LastChangeTo	String	Date of last change (to); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
ReceivedDateFrom	String	Reception date (from); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
ReceivedDateTo	String	Reception date (to); combining 2 or more years in the range is not allowed. This parameter filters by date, not by time.	yyyy-mm-dd
SenderCode*	String	Issuer's Fiscal ID. Mandatory field. If not sent, the Unautorized Action / company not authorized error is issued	See table Fiscal ID Structure
ReceiverCode	String	Receiver's Fiscal ID	See table Fiscal ID Structure
DocumentTypeId	Integer	Document type code in Gosocket (invoice, note, etc.)	1, 2, 3, 4, …
Series	String	Document series
Number	String	Document folio
SeriesNumber	String	Document series and folio concatenated
TwoCheckStatusSender	Integer	Issuer statuses with additional Smart Supply validations	0: pending 2: sent 3: accepted 4: rejected
TwoCheckStatusReceiver	Integer	Receiver statuses with additional Smart Supply validations	0: pending 2: sent 3: accepted 4: rejected
Has Offer	Boolean	Document offer status	True: Has offers False: Has no offers
OfferFinancialEntityCode	String	Tax ID of the company that made the offer	00000000-0
DocumentTagValues	String	Tags contained in the document	Example: "DocumentTagValues": { "AuthorityStatus": "2" }
ContainDocumentTagCode	Boolean	Indicator that the document contains the defined tag	True: the document contains the defined tag code. False: the document does not contain the defined tag code. Example: "ContainDocumentTagCode": { "AttRC": true }
ResultMaxItemCount	Integer	Number of query results; if a value above 100 is set, the system will cap it at 100 max.	1, 2, 3, 4, 5, 6, 7, 8, 9…100
ContinuationToken	String	Token that paginates the result if not all documents were returned in the previous query	Example: [{"compositeToken":{"token":null,"range":{"min":"05C1E0","max":"05C1E2"}},"orderByItems":[{"item":"2022-07-29T23:04:03.3120133Z"}],"rid":"2nsFAKt-OBYtwgQAAACACQ==","skipCount":0,"filter":null}]

*Required

---

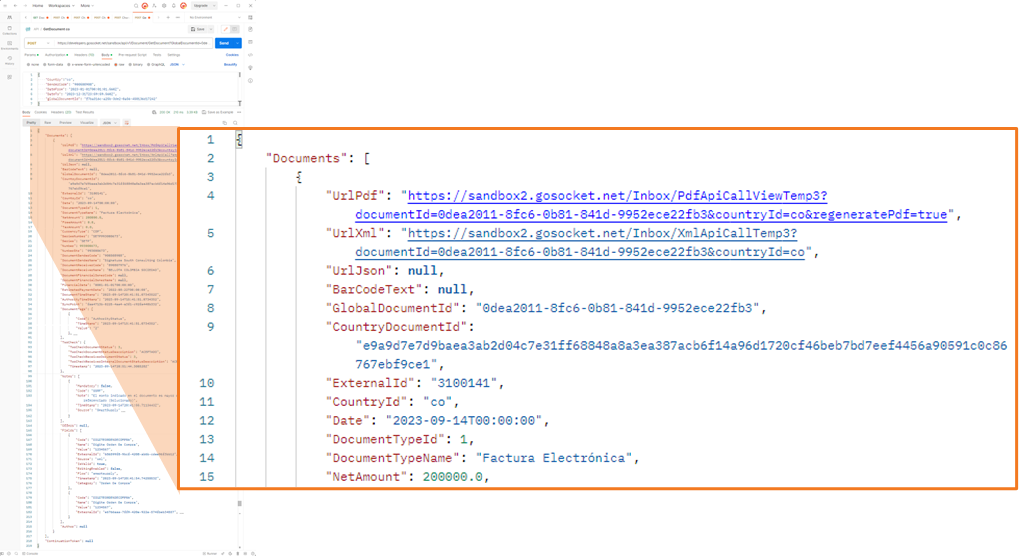

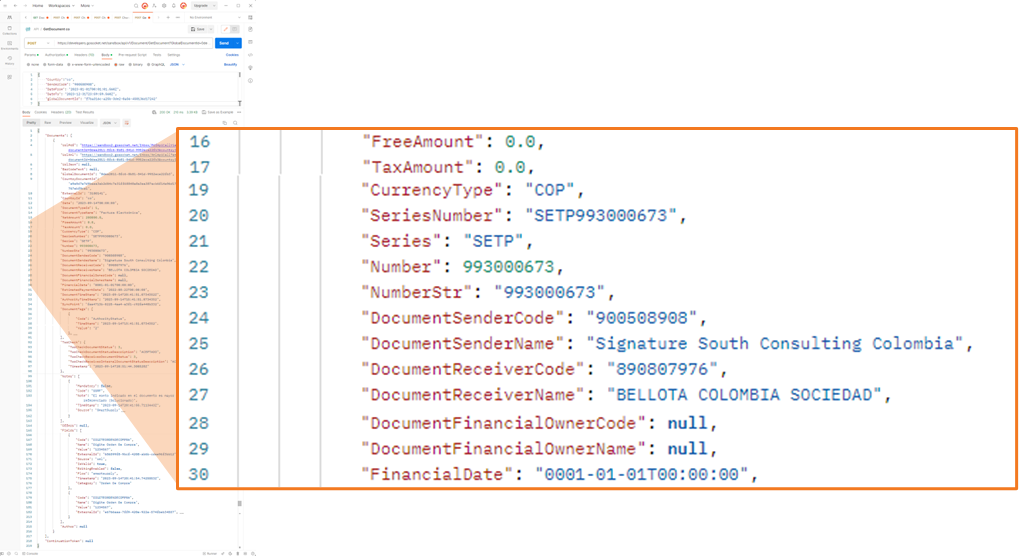

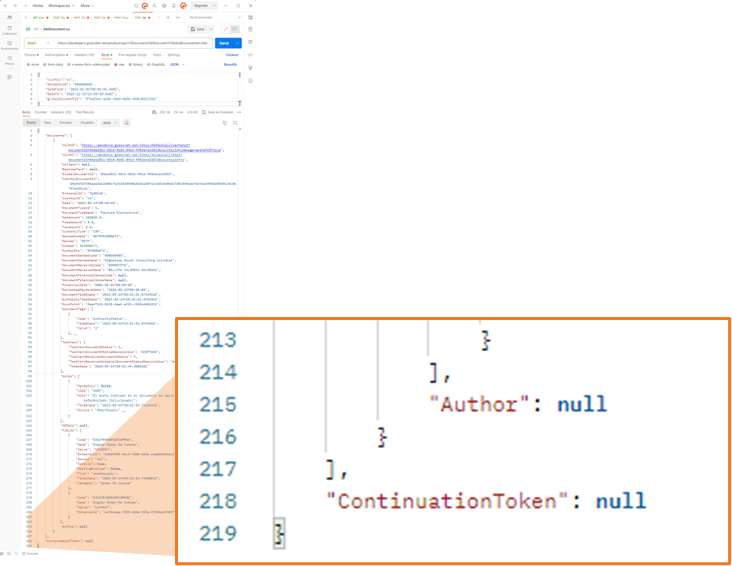

Response example

---

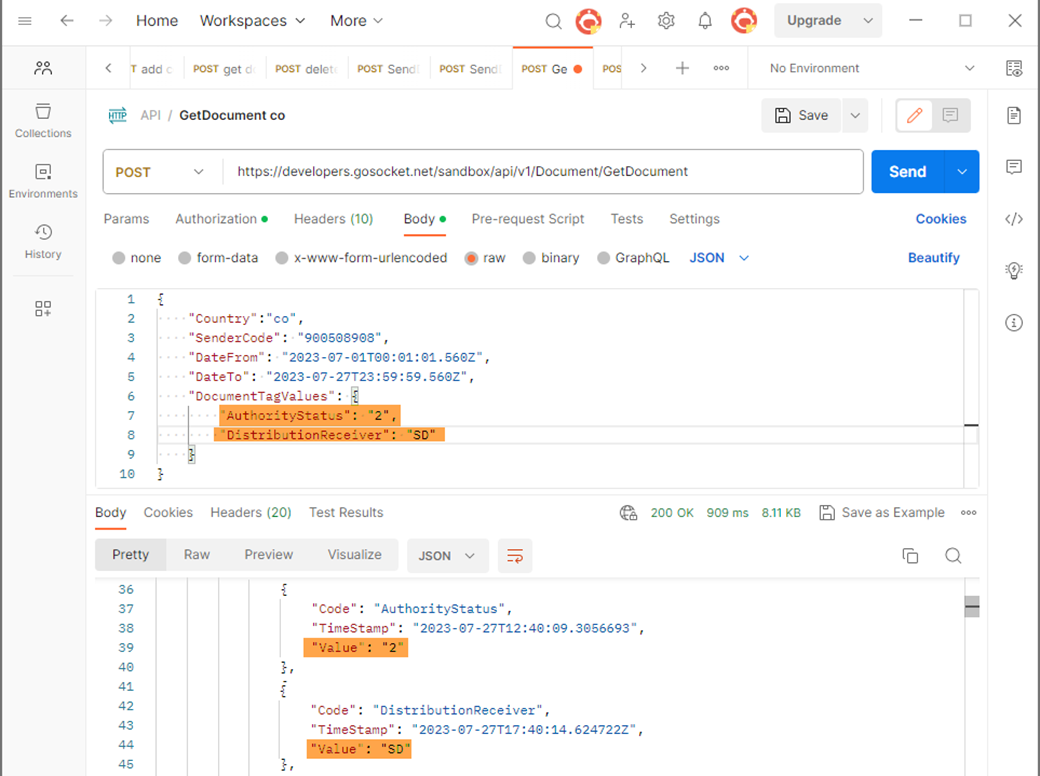

Example of querying tag values

GetDocument (response)
Parameter	Type	Description	Allowed values
UrlPdf	String	Download URL for the PDF file generated from the document	"https://... "
UrlXml	String	Download URL for the document's tax XML file	"https://... "
GlobalDocumentId	String	Document ID in Gosocket	36-character alphanumeric UUID xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
CountryDocumentId	String	Fiscal identifier of the document at the country level, also known as CUFE, CLAVE, UUID, ID	See table Country Document ID Structure
ExternalId	String	Document ID in the external system
CountryId	String	Country code of the document's issuance	ar, bo, br, cl, co, cr, ec, gt, mx, pa, pe, py, do, sv, uy
Date	String	Document issuance date	yyyy-mm-ddThh:mm:ss
DocumentTypeId	integer	Document type code in Gosocket (invoice, note, etc.)	1, 2, 3, 4, …
DocumentTypeName	String	Name of the document type in Gosocket	Example: Electronic Invoice
NetAmount	number	Net amount
FreeAmount	number	Amount
TaxAmount	number	Tax amount
TotalAmount	number	Total amount
CurrencyType	String	Currency type code in which the document's values are expressed	Example: COP
SeriesNumber	String	Document series and folio concatenated
Series	String	Document series
Number	integer	Document folio in numeric format
NumberStr	String	Document folio in string format
DocumentSenderCode	String	Issuer's Fiscal ID	See table Fiscal ID Structure
DocumentSenderName	String	Issuer's name
DocumentReceiverCode	String	Receiver's Fiscal ID	See table Fiscal ID Structure
DocumentReceiverName	String	Receiver's name
DocumentFinancialOwnerCode	String	Financier's ID	See table Fiscal ID Structure
DocumentFinancialOwnerName	String	Financier's name
FinancialDate	String	Financing date	yyyy-mm-ddThh:mm:ss
EstimatedPaymentDate	String	Estimated payment date	yyyy-mm-ddThh:mm:ss
DocumentTimeStamp	String	Reception date in Gosocket	yyyy-mm-ddThh:mm:ss
AuthorityTimeStamp	String	Validation date before the verifying entity	yyyy-mm-ddThh:mm:ss
SyncPoint	String	System user that sent the document to Gosocket	36-character alphanumeric UUID xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
DocumentTags	array	Tags contained in the document	Example: "DocumentTags": [ { "Code": "AuthorityStatus", "TimeStamp": "2022-07-29T18:04:03.3120133", "Value": "2" } ]
TwoCheck	array	Result of the additional validations of the SmartSupply module	Example: "TwoCheck": { "TwoCheckDocumentStatus": 3, "TwoCheckDocumentStatusDescription": "ACEPTADO", "TwoCheckReceiverDocumentStatus": 3, "TwoCheckReceiverInternalDocumentStatusDescription": "ACEPTADO", "Timestamp": "2022-07-02T23:08:07.6106945Z" }
Notes	array	Document notes	Example: "Notes": [ { "Mandatory": false, "Code": "FAJ73", "Note": " Notificación: Estructura código no valida", "TimeStamp": "2022-07-02T18:29:14.6451258Z", "Source": "DIAN" } ]
Offers	array	Document offers

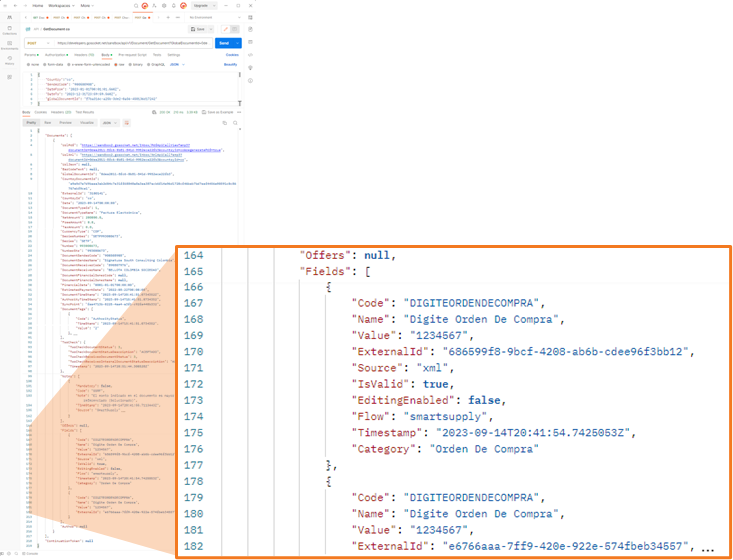

Fields	array	Additional information	Example: "Fields": [ { "Code": "ORDENINTERNA", "Name": "Orden Interna", "Value": "COCCRPPE02", "ExternalId": "46a0810c-cbbe-44bd-8b38-7f736a416952", "Source": "ARESTREPO@GEO-PARK.COM", "IsValid": true, "EditingEnabled": false, "Flow": "smartsupply", "Timestamp": "2022-07-29T22:26:06.7719072Z", "Category": "Orden interna" } ]
Author	String	User who created the document	null or email
ContinuationToken	String	Token to paginate the result if not all documents were returned in the query performed	Example: [{"compositeToken":{"token":null,"range":{"min":"05C1E0","max":"05C1E2"}},"orderByItems":[{"item":"2022-07-29T23:04:03.3120133Z"}],"rid":"2nsFAKt-OBYtwgQAAACACQ==","skipCount":0,"filter":null}]

Note: The XML and PDF file download URLs are activated per company. Therefore, to be able to view them, their activation must be requested.

---

Method characteristics

• The method retrieves the document's information.
• It can be queried as many times as required.
• When no information is found with the query parameters, the service responds:

{
"Documents": [],
"ContinuationToken": null
}

• When not querying by a specific document Id, the maximum number of documents the query returns is 10 documents.

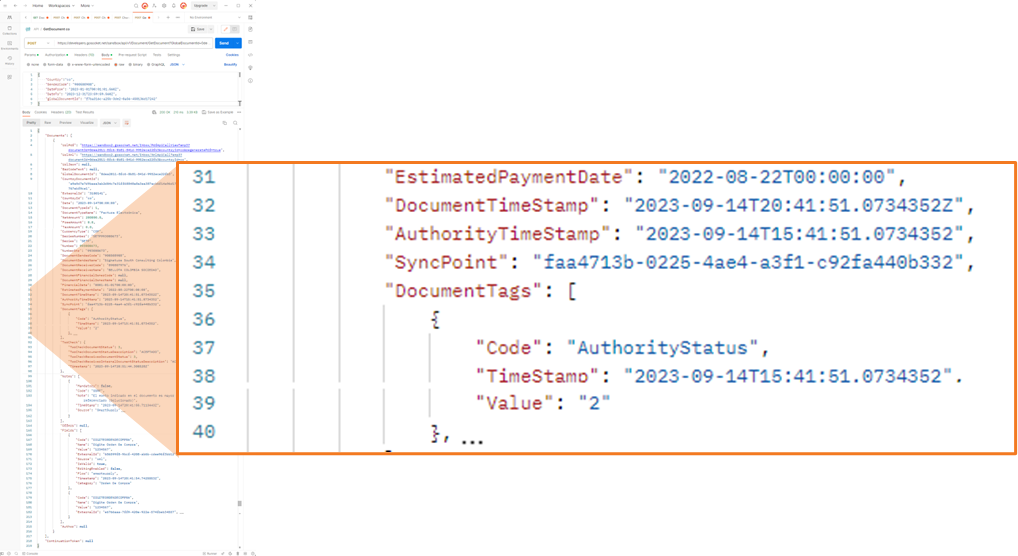

• The statuses the document has gone through can be seen in the DocumentTags section

DocumentTags values (GetDocument)
Code	Description	Possible values
AuthorityStatus	Status before the tax authority	00: To be sent 01: Sent 02: Approved (Validated) 03: Rejected 04: Cancelled
AuthorityFormatVersion	XML format version for the tax authority	2.1 4.0 4.3
ACD	Commercial Acceptance or Rejection	A: Accepted R: Rejected
ARR	Acknowledgment of Receipt	RF: FE Acknowledgment of Receipt ER: Shipment Rejected
ARM	Goods receipt	RM: Received
AttSC	Has attachments for the issuer	t: True
AttRC	Has attachments for the receiver	t: True
Audit	Contains audit information	t: True
Payment	Indicates whether the document is paid	MPP: Marked as Partial Payment MTP: Marked as Full Payment
Division	Division or group the document belongs to
subdivision	Subdivision or subgroup the document belongs to
BranchOffice	Document's cost center
Financed	Indicates whether the document is financed or advanced
TradeShiftTxId	ID returned by TradeShift when sending the document
DistributionReceiver, DistributionSender, Distribution	Indicates the document's distribution	SD: No Distribution Rules PD: Partially Distributed ED: Distribution Error TD: Distributed

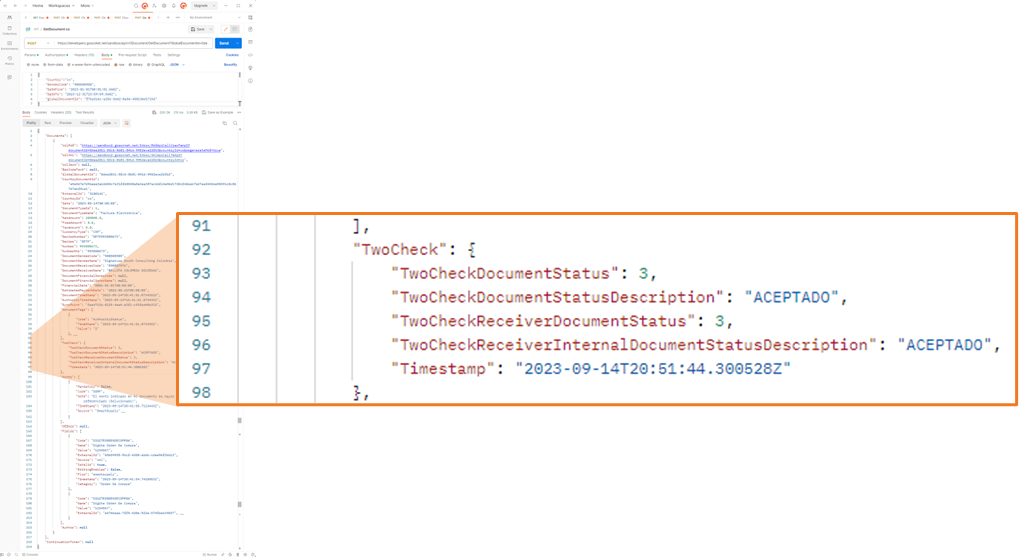

In the TwoCheck section you can see the result of the SmartSupply process validations:

TwoCheck values (GetDocument)
Status	Description
0	Pending
2	Sent
3	Accepted
4	Rejected

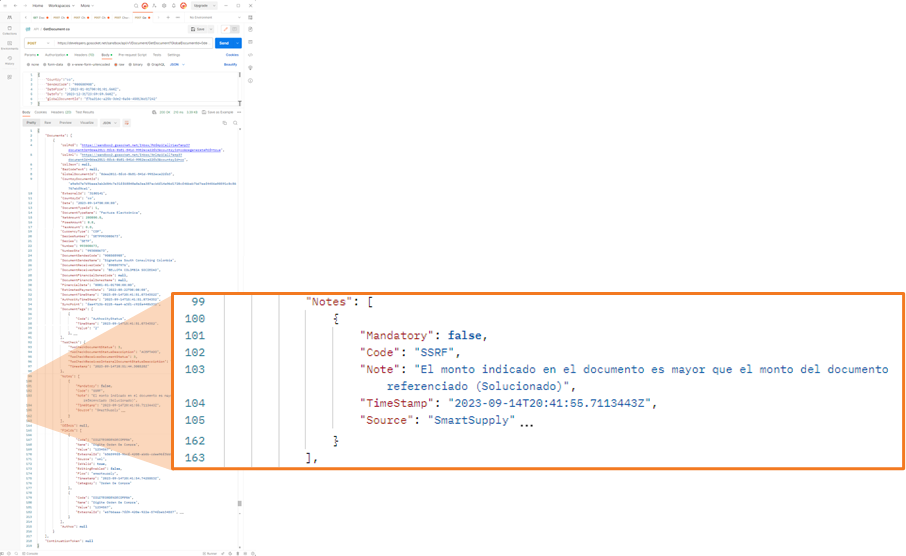

• In the Notes section you can see the notes associated with the document, which can come from different sources:

  • Tax Authority (DIAN, SII, SRI, SUNAT, PAC)
  • Commercial Events
  • Mail server
  • Distribution mail server
  • Distribution via Ftp/Sftp
  • SmartSupply
  • Gosocket
