Method to download the XML file (DownloadDocumentXml)

This method allows you to download a document's XML file using the GET DownloadDocumentXml service.

Through this method, you obtain the base64-encoded XML file of the queried document.

To connect to this functionality, you will need to enter the URL according to the environment you want to use:

PRODUCTIONhttps://developers.gosocket.net/api/v1/File/DownloadDocumentXml

SANDBOXhttps://developers-sbx.gosocket.net/api/v1/File/DownloadDocumentXml

How does the DownloadDocumentXml method work?

To make the request, the method has the following parameters:

DownloadDocumentXml (request)
Parameter	Type	Description	Allowed values
globalDocumentId*	String	Document identification in Gosocket.	36-character alphanumeric UUID xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
type	String	Type of XML to download	See the Types of files to download table

*Required

Types of Files to Download
Type	Description	Countries where it applies
original	Fiscal (Tax) XML: XML sent to the Tax Authority. Only includes the custom fields in the countries where the Authority supports them within the XML.	AR, BO, CO, CR, DO, EC, PA, PE, PY, UY
default	Gosocket XML: XML that is stored in Inbox, includes the custom fields	All
response	Tax Authority Response: File with the Tax Authority's response for the issued document.	All
smartsupply	Smart Supply XML: XML that includes the fields related to the SS functionality.	All countries where SS is implemented
distribution	Distribution XML: XML that is distributed mandatorily	CO
addenda	Commercial Addenda XML: XML with the Addenda node	MX
integration	Integration JSON file: File with the request sent to the API for issuing the document	All

Request example

Fictitious data

The identifiers, tax IDs, and contents in these examples are fictitious; they are included only to illustrate the format of requests and responses.

GET https://developers-sbx.gosocket.net/api/v1/File/DownloadDocumentXml?globalDocumentId=aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa&type=original

Note: Remember that before using the method, you must authenticate within the Authorization tab.

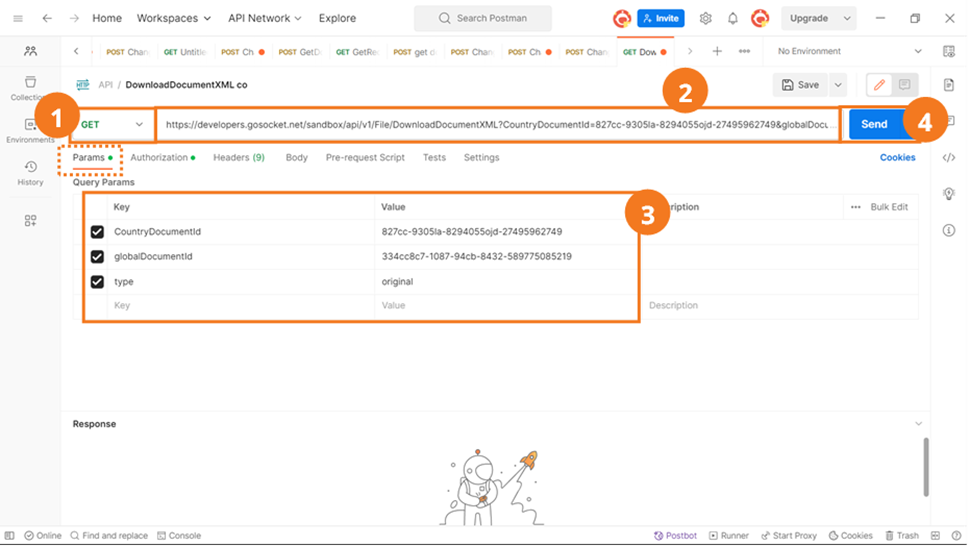

For this method, we use the Postman Params tab.

Select the method type. In this case, you must select GET.
Enter the method's URL.
Enter the parameters shown in the table above with their corresponding values.
Press Send.

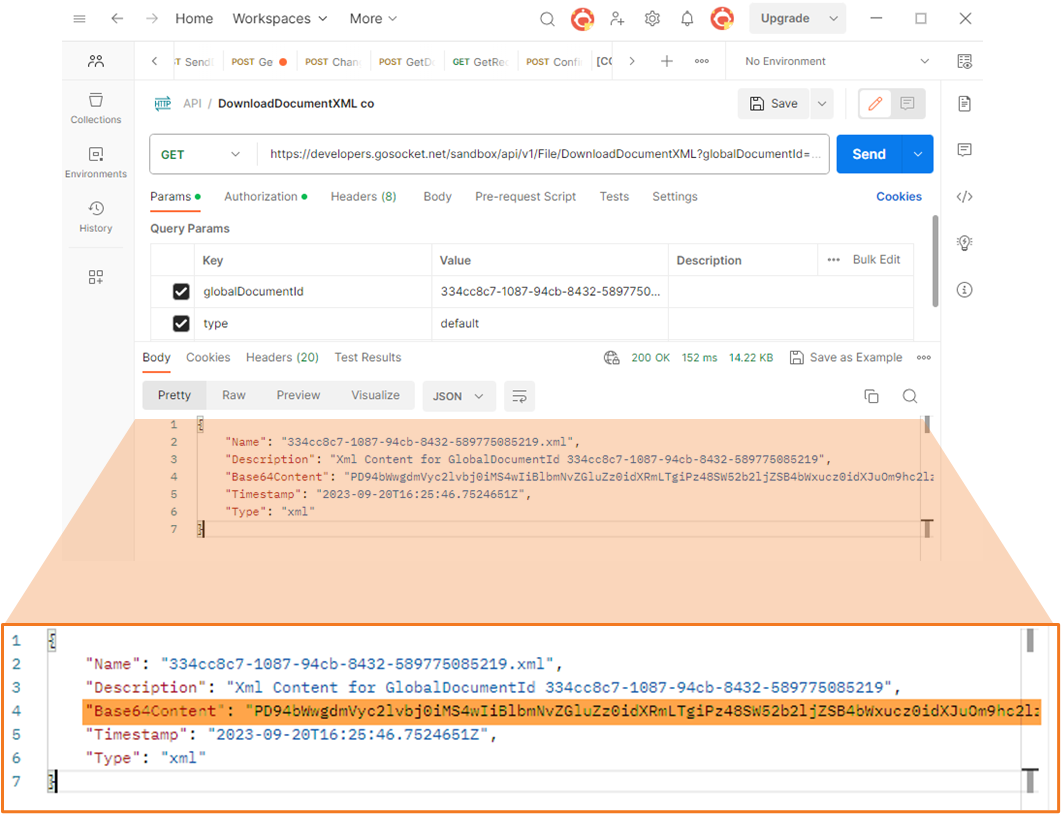

Response example for downloading the Default XML (Gosocket)

{
  "Name": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa.xml",
  "Description": "Xml Content for GlobalDocumentId aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
  "Base64Content": "PD94bWwgdmVyc2lvbj0iMS4wIi...",
  "Timestamp": "2023-09-20T16:25:46.7524651Z",
  "Type": "xml"
}

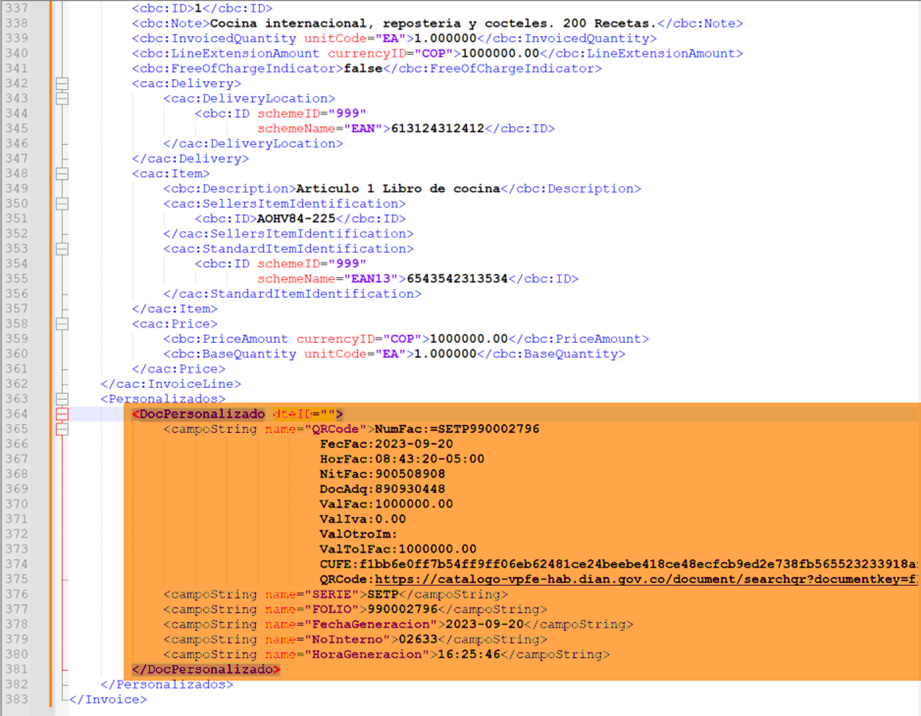

You can convert the response of the Base64Content parameter, whose result, for this example, is as follows (fragment — it includes the custom fields inside the <Personalizados> node):

<!-- … -->
<cac:InvoiceLine>
    <cbc:ID>1</cbc:ID>
    <cbc:Note>Cocina internacional, reposteria y cocteles. 200 Recetas.</cbc:Note>
    <cbc:InvoicedQuantity unitCode="EA">1.000000</cbc:InvoicedQuantity>
    <cbc:LineExtensionAmount currencyID="COP">1000000.00</cbc:LineExtensionAmount>
    <cbc:FreeOfChargeIndicator>false</cbc:FreeOfChargeIndicator>
    <cac:Delivery>
        <cac:DeliveryLocation>
            <cbc:ID schemeID="999" schemeName="EAN">613124312412</cbc:ID>
        </cac:DeliveryLocation>
    </cac:Delivery>
    <cac:Item>
        <cbc:Description>Articulo 1 Libro de cocina</cbc:Description>
        <cac:SellersItemIdentification>
            <cbc:ID>AOHV84-225</cbc:ID>
        </cac:SellersItemIdentification>
        <cac:StandardItemIdentification>
            <cbc:ID schemeID="999" schemeName="EAN13">6543542313534</cbc:ID>
        </cac:StandardItemIdentification>
    </cac:Item>
    <cac:Price>
        <cbc:PriceAmount currencyID="COP">1000000.00</cbc:PriceAmount>
        <cbc:BaseQuantity unitCode="EA">1.000000</cbc:BaseQuantity>
    </cac:Price>
</cac:InvoiceLine>
<Personalizados>
    <DocPersonalizado dteID="">
        <campoString name="QRCode">NumFac:=SETP990002796
            FecFac:2023-09-20
            HorFac:08:43:20-05:00
            NitFac:900000000
            DocAdq:800000000
            ValFac:1000000.00
            ValIva:0.00
            ValOtroIm:
            ValTolFac:1000000.00
            CUFE:0123456789abcdef0123456789abcdef0123456789abcdef...
            QRCode:https://catalogo-vpfe-hab.dian.gov.co/document/searchqr?documentkey=0123456789abcdef...</campoString>
        <campoString name="SERIE">SETP</campoString>
        <campoString name="FOLIO">990002796</campoString>
        <campoString name="FechaGeneracion">2023-09-20</campoString>
        <campoString name="NoInterno">02633</campoString>
        <campoString name="HoraGeneracion">16:25:46</campoString>
    </DocPersonalizado>
</Personalizados>

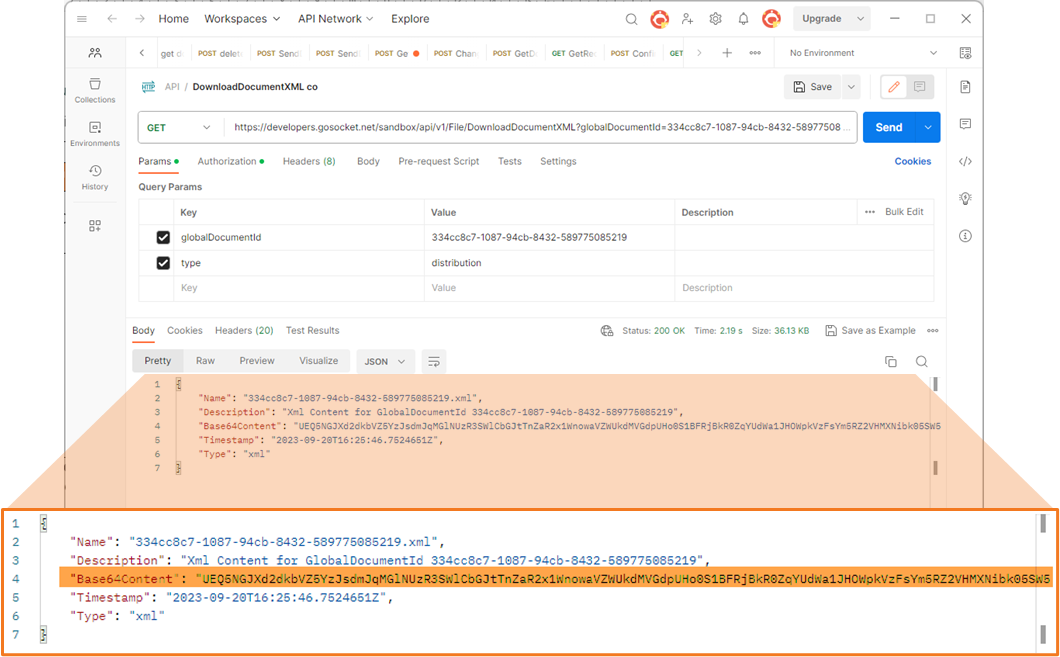

Response example for downloading the distribution XML

{
  "Name": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa.xml",
  "Description": "Xml Content for GlobalDocumentId aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
  "Base64Content": "UEQ5NGJXd2dkbVZ5YzJsdmJqMGlNUzR3U1dsQ2JHSnRUblpaUjJ4MVdub3dhVlpXVWtkTVZHZHBUSG84UzFCRlJqQkRSMVpxWVVkYWJIS1JSMkR6...",
  "Timestamp": "2023-09-20T16:25:46.7524651Z",
  "Type": "xml"
}

You can convert the response of the Base64Content parameter, whose result, for this example, is as follows:

<?xml version="1.0" encoding="UTF-8"?>
<AttachedDocument xmlns="urn:oasis:names:specification:ubl:schema:xsd:AttachedDocument-2"
    xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2"
    xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2"
    xmlns:ext="urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2"
    xmlns:sts="dian:gov:co:facturaelectronica:Structures-2-1"
    xmlns:xades="http://uri.etsi.org/01903/v1.3.2#"
    xmlns:xades141="http://uri.etsi.org/01903/v1.4.1#"
    xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
    <ext:UBLExtensions/>
    <cbc:UBLVersionID>UBL 2.1</cbc:UBLVersionID>
    <cbc:CustomizationID>05</cbc:CustomizationID>
    <cbc:ProfileID>DIAN 2.1: Factura Electrónica de Venta</cbc:ProfileID>
    <cbc:ProfileExecutionID>2</cbc:ProfileExecutionID>
    <cbc:ID>1695268803</cbc:ID>
    <cbc:IssueDate>2023-09-26</cbc:IssueDate>
    <cbc:IssueTime>22:17:49-05:00</cbc:IssueTime>
    <cbc:DocumentType>Contenedor de Factura Electrónica</cbc:DocumentType>
    <cbc:ParentDocumentID>SETP990002796</cbc:ParentDocumentID>
    <cac:SenderParty>
        <cac:PartyTaxScheme>
            <cbc:RegistrationName>EMPRESA EJEMPLO</cbc:RegistrationName>
            <cbc:CompanyID schemeAgencyID="195" schemeID="4" schemeName="31">900000000</cbc:CompanyID>
            <cbc:TaxLevelCode listName="05">O-99</cbc:TaxLevelCode>
            <cac:TaxScheme>
                <cbc:ID>01</cbc:ID>
                <cbc:Name>IVA</cbc:Name>
            </cac:TaxScheme>
        </cac:PartyTaxScheme>
    </cac:SenderParty>
    <cac:ReceiverParty>
        <cac:PartyTaxScheme>
            <cbc:RegistrationName>CLIENTE EJEMPLO</cbc:RegistrationName>
            <cbc:CompanyID schemeAgencyID="195" schemeID="5" schemeName="31">800000000</cbc:CompanyID>
            <cbc:TaxLevelCode listName="05">O-13</cbc:TaxLevelCode>
            <cac:TaxScheme>
                <cbc:ID>01</cbc:ID>
                <cbc:Name>IVA</cbc:Name>
            </cac:TaxScheme>
        </cac:PartyTaxScheme>
    </cac:ReceiverParty>
    <cac:Attachment>
        <cac:ExternalReference>
            <cbc:MimeCode>text/xml</cbc:MimeCode>
            <cbc:EncodingCode>UTF-8</cbc:EncodingCode>
            <cbc:Description><![CDATA[<?xml version="1.0" encoding="utf-8"?><Invoice xmlns="urn:oasis:names:specification:ubl:schema:xsd:Invoice-2" ...]]></cbc:Description>
        </cac:ExternalReference>
    </cac:Attachment>
    <cac:ParentDocumentLineReference>
        <cbc:LineID>1</cbc:LineID>
        <!-- … -->

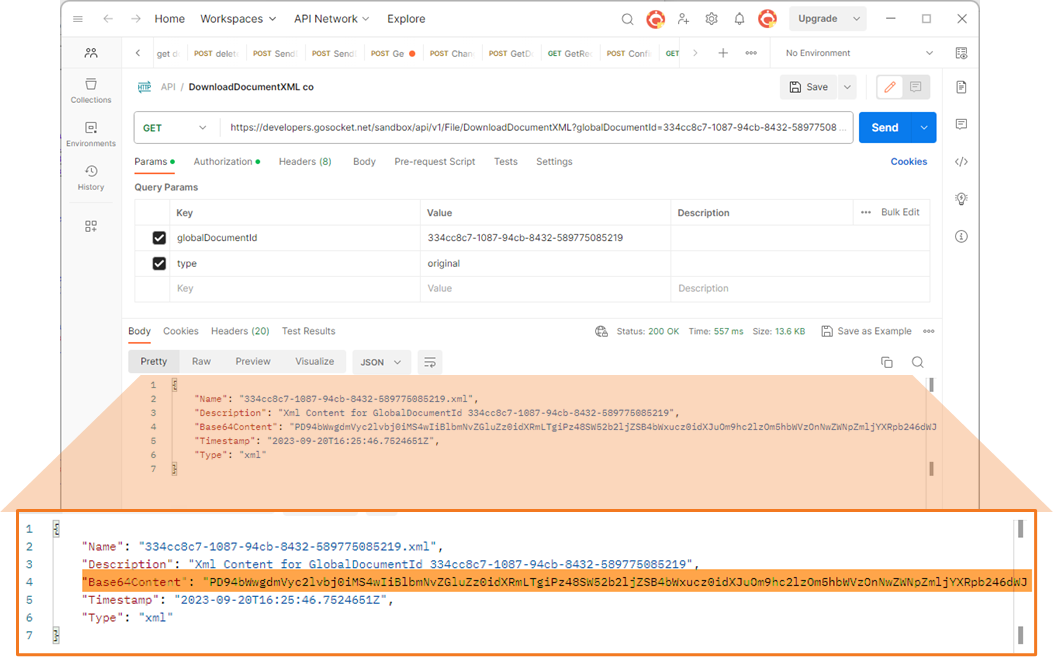

Response example for downloading the original XML (Tax Authority XML)

{
  "Name": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa.xml",
  "Description": "Xml Content for GlobalDocumentId aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
  "Base64Content": "PD94bWwgdmVyc2lvbj0iMS4wIi...",
  "Timestamp": "2023-09-20T16:25:46.7524651Z",
  "Type": "xml"
}

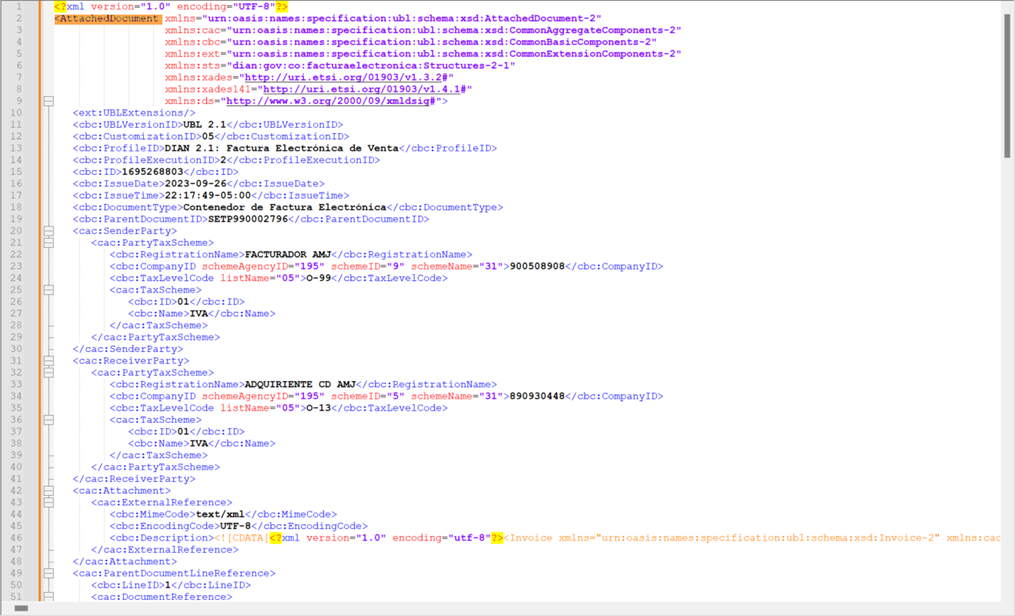

You can convert the response of the Base64Content parameter, whose result, for this example, is as follows:

<?xml version="1.0" encoding="UTF-8"?>
<AttachedDocument xmlns="urn:oasis:names:specification:ubl:schema:xsd:AttachedDocument-2"
    xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2"
    xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2"
    xmlns:ext="urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2"
    xmlns:sts="dian:gov:co:facturaelectronica:Structures-2-1"
    xmlns:xades="http://uri.etsi.org/01903/v1.3.2#"
    xmlns:xades141="http://uri.etsi.org/01903/v1.4.1#"
    xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
    <ext:UBLExtensions/>
    <cbc:UBLVersionID>UBL 2.1</cbc:UBLVersionID>
    <cbc:CustomizationID>05</cbc:CustomizationID>
    <cbc:ProfileID>DIAN 2.1: Factura Electrónica de Venta</cbc:ProfileID>
    <cbc:ProfileExecutionID>2</cbc:ProfileExecutionID>
    <cbc:ID>1695268803</cbc:ID>
    <cbc:IssueDate>2023-09-26</cbc:IssueDate>
    <cbc:IssueTime>22:17:49-05:00</cbc:IssueTime>
    <cbc:DocumentType>Contenedor de Factura Electrónica</cbc:DocumentType>
    <cbc:ParentDocumentID>SETP990002796</cbc:ParentDocumentID>
    <cac:SenderParty>
        <cac:PartyTaxScheme>
            <cbc:RegistrationName>EMPRESA EJEMPLO</cbc:RegistrationName>
            <cbc:CompanyID schemeAgencyID="195" schemeID="4" schemeName="31">900000000</cbc:CompanyID>
            <cbc:TaxLevelCode listName="05">O-99</cbc:TaxLevelCode>
            <cac:TaxScheme>
                <cbc:ID>01</cbc:ID>
                <cbc:Name>IVA</cbc:Name>
            </cac:TaxScheme>
        </cac:PartyTaxScheme>
    </cac:SenderParty>
    <cac:ReceiverParty>
        <cac:PartyTaxScheme>
            <cbc:RegistrationName>CLIENTE EJEMPLO</cbc:RegistrationName>
            <cbc:CompanyID schemeAgencyID="195" schemeID="5" schemeName="31">800000000</cbc:CompanyID>
            <cbc:TaxLevelCode listName="05">O-13</cbc:TaxLevelCode>
            <cac:TaxScheme>
                <cbc:ID>01</cbc:ID>
                <cbc:Name>IVA</cbc:Name>
            </cac:TaxScheme>
        </cac:PartyTaxScheme>
    </cac:ReceiverParty>
    <cac:Attachment>
        <cac:ExternalReference>
            <cbc:MimeCode>text/xml</cbc:MimeCode>
            <cbc:EncodingCode>UTF-8</cbc:EncodingCode>
            <cbc:Description><![CDATA[<?xml version="1.0" encoding="utf-8"?><Invoice xmlns="urn:oasis:names:specification:ubl:schema:xsd:Invoice-2" ...]]></cbc:Description>
        </cac:ExternalReference>
    </cac:Attachment>
    <!-- … -->

Note: Unlike the other XML types, it does not contain custom fields.

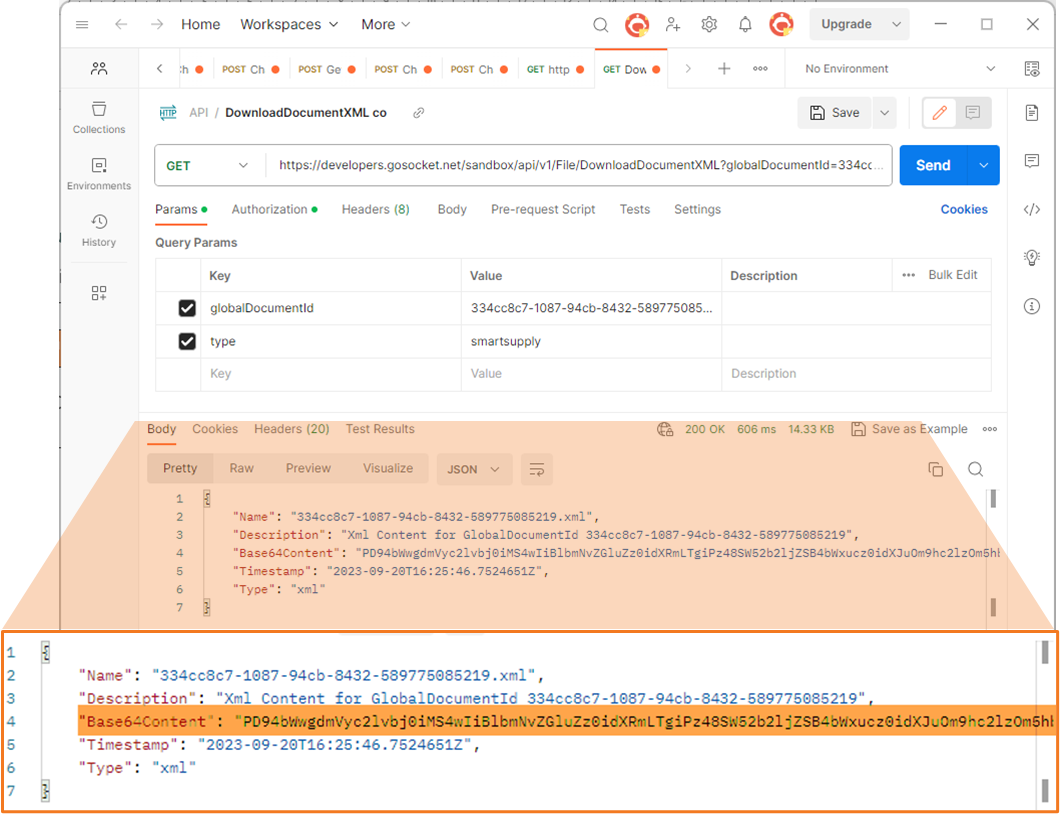

Response example for downloading the Smart Supply XML

{
  "Name": "aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa.xml",
  "Description": "Xml Content for GlobalDocumentId aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa",
  "Base64Content": "PD94bWwgdmVyc2lvbj0iMS4wIi...",
  "Timestamp": "2023-09-20T16:25:46.7524651Z",
  "Type": "xml"
}

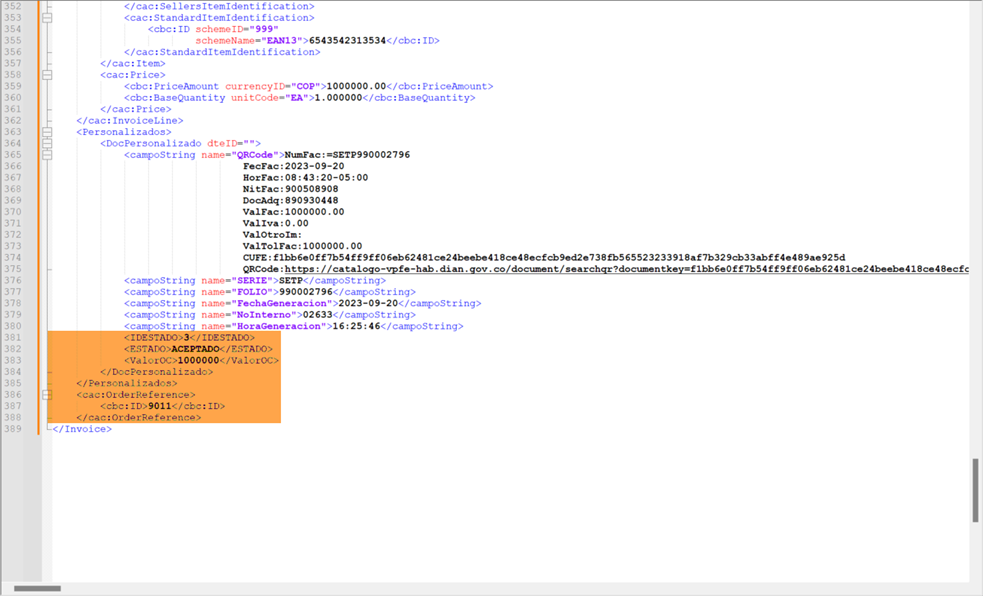

You can convert the response of the Base64Content parameter, whose result, for this example, is as follows:

<!-- … -->
<cac:InvoiceLine>
    <!-- … -->
    <cac:Price>
        <cbc:PriceAmount currencyID="COP">1000000.00</cbc:PriceAmount>
        <cbc:BaseQuantity unitCode="EA">1.000000</cbc:BaseQuantity>
    </cac:Price>
</cac:InvoiceLine>
<Personalizados>
    <DocPersonalizado dteID="">
        <campoString name="QRCode">NumFac:=SETP990002796
            FecFac:2023-09-20
            HorFac:08:43:20-05:00
            NitFac:900000000
            DocAdq:800000000
            ValFac:1000000.00
            ValIva:0.00
            ValOtroIm:
            ValTolFac:1000000.00
            CUFE:0123456789abcdef0123456789abcdef0123456789abcdef...
            QRCode:https://catalogo-vpfe-hab.dian.gov.co/document/searchqr?documentkey=0123456789abcdef...</campoString>
        <campoString name="SERIE">SETP</campoString>
        <campoString name="FOLIO">990002796</campoString>
        <campoString name="FechaGeneracion">2023-09-20</campoString>
        <campoString name="NoInterno">02633</campoString>
        <campoString name="HoraGeneracion">16:25:46</campoString>
        <IDESTADO>3</IDESTADO>
        <ESTADO>ACEPTADO</ESTADO>
        <ValorOC>1000000</ValorOC>
    </DocPersonalizado>
</Personalizados>
<cac:OrderReference>
    <cbc:ID>9011</cbc:ID>
</cac:OrderReference>

Response parameters

DownloadDocumentXml (response)
Parameter	Type	Description	Allowed values
Name	String	Name of the downloaded XML file	globalDocumentId.xml
Description	String	Description of the event performed.	Xml Content for GlobalDocumentId xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Base64Content	String	Base64-encoded XML file
TimeStamp	String	Date and time the document was created	yyyy-mm-ddThh:mm:ss
Type	String	File type	"xml"

Method characteristics

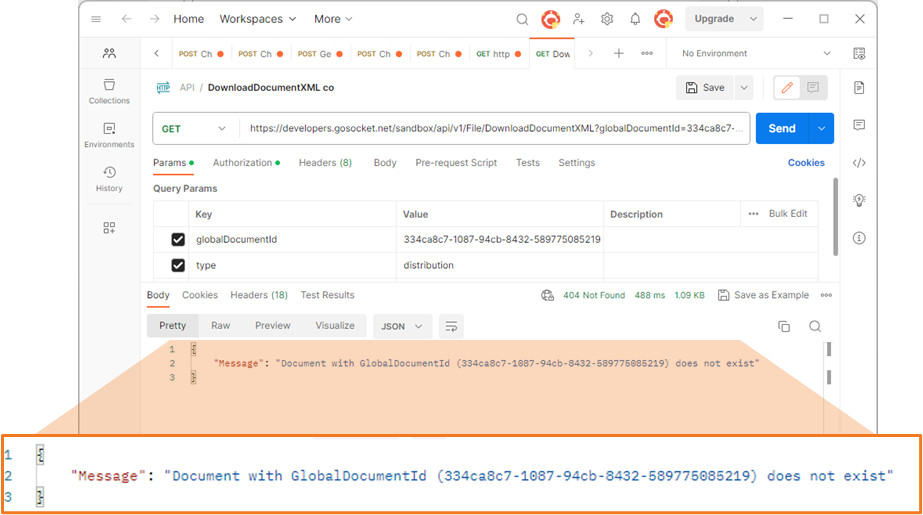

When the document Id (globalDocumentId) does not exist, the system responds with a 404 Not Found error message:
```
{
    "Message": "Document with GlobalDocumentId (00000000-0000-0000-0000-000000000000) does not exist"
}
```
The file can be downloaded as many times as necessary.
When the type parameter is not specified, or a value outside the list is entered, the API responds with the default type XML.
The distribution XML has double encoding, so it will need to be decoded twice.
