Colombia: Reception of Documents (MS)

1. XML RECEPTION PROCESS

This process allows different types of documents to be received from customers and suppliers through the channels offered by Gosocket. Once received, both the issuer and the receiver can view the documents in the Received tray of Inbox, along with their corresponding graphic representation and attached files.

Likewise, our system performs a series of automatic validations to ensure that the structure and integrity of the information strictly comply with the requirements of the tax authorities.

The following image describes, step by step, the document reception flow within the Inbox platform:

Colombia reception process

1. Methods for sending the XML document in Gosocket:

The supplier has the option of sending the XML document to the Gosocket platform in three ways:

a. The supplier performs the manual upload of the XML file using the Upload option in Gosocket. The requirements and conditions for this process are detailed in the Manual upload section.

b. The supplier sends the XML document through Gosocket's exchange mailbox. The requirements and conditions for this process are detailed in the Exchange mailbox section.

c. The supplier uploads the XML document through the Gosocket Reception API. The requirements and conditions for this process are detailed in the Reception APIs section.

info

Note: When using any of the following document reception channels:

• Exchange mailbox
• Manual XML upload (Upload option)
• Reception API

The system will automatically run the schema, signature, and corresponding validation with the Tax Authority (TA) checks.

2. Receiving and validating documents in Gosocket

The Gosocket portal downloads and processes the XML. When it is a tax document, it enters a reception validation process.

3. Document schema validation

First, a schema validation is performed on the XML document to ensure that it complies with the format established by the tax authority. Depending on the result of this validation, the process can lead to one of the following scenarios:

d. Failed: The document does not comply with the tax format, the document reception flow will be stopped due to the schema error, it will be registered in Gosocket with the status Schema Error, and the interface will show the icon , and the reason for rejection will be detailed in the document's notes, as follows:

Schema error icon in inbox

Document detail, Notes section - Schema Error

Detail of the XML processing for the schema error

e. Successful: If the XML schema validation is correct, the document will continue with the reception flow.

Document detail, Notes section - Successful schema validation

info

Special configuration: The XML has a schema error, but if this configuration is enabled, this option allows the reception flow to continue:

This feature can be enabled independently for each company. Its purpose is that, if a schema error is detected in the XML when the document is received in Gosocket, the specific error detail will be automatically recorded in the document's "Notes" section.

Despite this finding, the document will continue its normal flow toward the following reception validations, such as the signature and tax authority verification.

The document will remain in Inbox as follows:

• In Gosocket, the document will be in Validated by TA with schema error status and the orange icon will be shown, as follows:

For more details on how to configure this functionality, see the following section: XML Configuration Presents Schema Errors and Reception Flow Continues

4. Electronic signature validation of the document

Second, an electronic signature validation of the document is performed to ensure that the information has not been altered. This validation can produce one of the following results:

f. Failed: This means the document has been altered, the document reception flow will be stopped due to the signature error, so it will be registered in Gosocket with the status Signature Error, the interface will show an icon , and the preview notes will indicate the reason for rejection, as follows:

Signature error icon in Inbox

Document detail, Notes section - Signature Error

Detail of the XML processing for the signature error

g. Successful: If the electronic signature validation of the XML is correct, the document will continue with the reception flow.

Document detail, Notes section - Successful signature validation

5.Document validation with the Tax Authority

Third, the query validation with the Tax Authority is performed. This validation can produce several results:

h. Document has an internal exception from Gosocket ❗

When performing the validation query with the Tax Authority of the document and Gosocket cannot connect to the TA service or there are communication errors with the service, the document changes its status to ERROR and is assigned the icon ❗.

Error icon in inbox: No communication with the TA.

Document detail, Notes section - Document validation with the TA with communication error.

i. At this point in the process, when the document does exist in the tax authority, two responses can result:

• If the document exists, but its status is Rejected (See item j for more detail)
• If the document exists, but its status is Accepted (See item k for more detail)

j. Document Rejected by the Tax Authority

If the document exists in the TA, but there is some reason for rejection at the Tax Authority, its status will be Rejected and it will be assigned the icon .

Rejected icon in inbox: Document validation with the TA rejected

Document detail, Notes section - Document validation with the TA rejected

k. Document Accepted by the Tax Authority

If the result of the previous validations (Schema and Signature) is satisfactory and the query with the tax authority is successful, the document will be registered in Gosocket with the status Accepted. In the interface, this status will be identified with a green check icon.

Accepted icon in inbox: Successful document validation with the TA

Document detail, Notes section - Successful document validation with the TA

L. Automatic retries when the document has the status Not Available in the TA .

At this stage of the process, when the document does not exist in the Tax Authority, this indicates that the received document is not registered with the TA. In this scenario, the following actions are performed on the document:

• In Gosocket, the document will be set to the Not Available in ET status and will be assigned the corresponding icon .

• An automatic retry process will be triggered, which consists of performing multiple queries to the Tax Authority to check whether the document changes to a status other than Not Available in ET. If a different status is obtained during any of these retries, the document will automatically update both its status and its corresponding icon.

• If, after completing all the retries, the document is still not available in the Tax Authority, it will keep the Not Available in ET status and the corresponding icon .

• The current retry parameter is 30 attempts in 1 hour (the query is retried every 2 minutes).

When the document is received and the query retries with the TA are performed, the following message is shown in the Notes section:

and within the document detail, the “TAX-CHECK” code will indicate that the validation with the TA has started:

Once the automatic retries have been exhausted (approximately one hour later), the final status of the document with the TA will be displayed, as follows:

and the document detail will show the message:

“Integrated Query with the TA: Does not exist. 30 attempts were made. Manual reprocessing was performed.”

and another message will be shown on the other line: “The maximum number of retries for the status query with the TA was reached”, as follows:

and after these retries, two responses can result:

m. If after 30 attempts the document still cannot be found, it will remain permanently in Not Available in ET status, showing the following icon in the Inbox.

Rejected icon in inbox: Document validation with the TA

n. If during these retries the document is found in the TA, its status is updated, the process continues, and two responses can result:

• If the document exists, but its status is Rejected (See item j for more detail)
• If the document exists, but its status is Accepted (See item k for more detail)

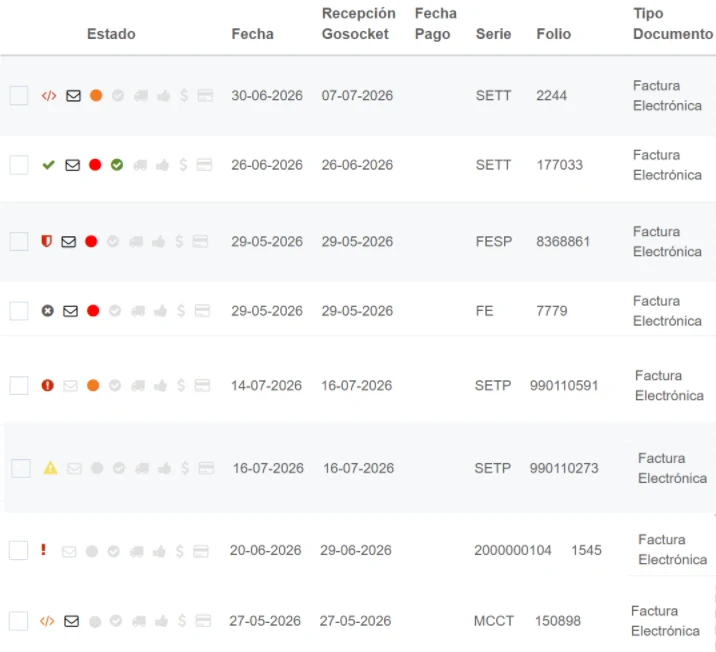

6. Icons in inbox for reception validation results

Finally, both the issuer and the receiver can view the results of the XML document validations in Inbox, as follows:

No.	Status	Icon in the inbox interface
o	Document has schema error
p	Document has signature error
q	Communication error with the Tax Authority
r	Document was Accepted by the Tax Authority
s	Document was Rejected by the Tax Authority
t	Document not available or not existing at the Tax Authority

info

Document has an update with the TA: The recipient's NIT contains a check digit

“The recipient's NIT contains a check digit”, its status changes to ALERT and it will be assigned the icon , which will indicate that commercial events CANNOT be applied to the document.

and in the document's Notes section the record will be left with the corresponding description:

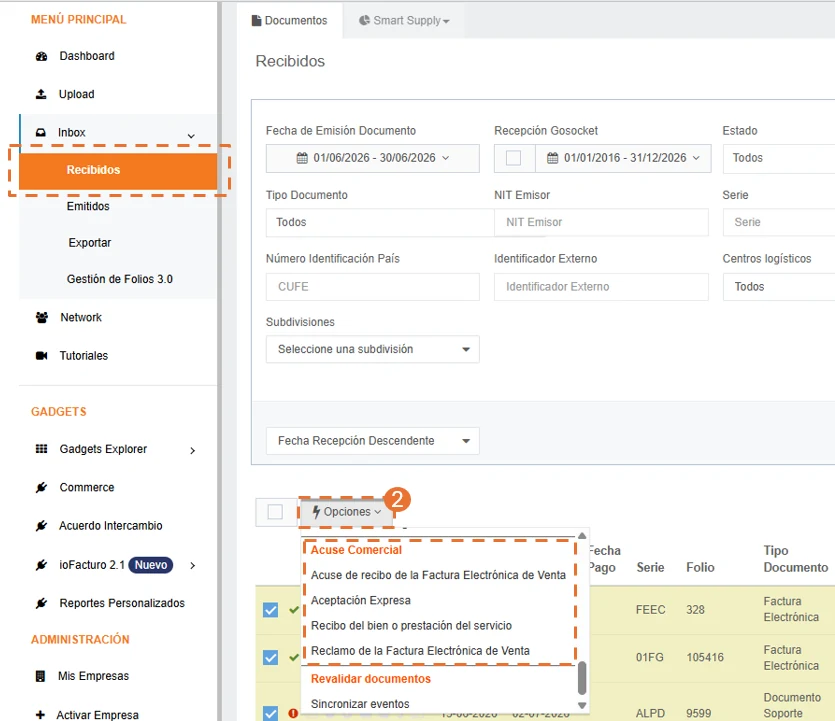

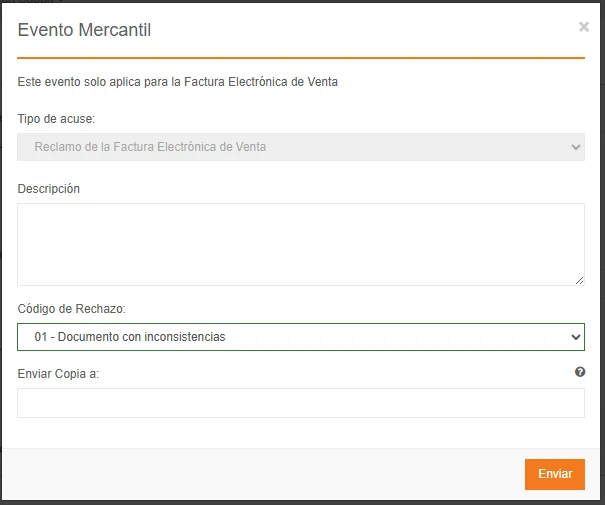

7. Issuing commercial acknowledgments

Once the document has been received and validated, the necessary commercial acknowledgments can be issued as needed from the Inbox platform, or otherwise sent through the exchange mailbox. This is explained in more detail in the section Commercial acknowledgments

---

2. MANUALLY REPROCESSING DOCUMENTS

Additionally, a button has been implemented in Inbox that allows manually reprocessing tax documents that have the status “ERROR” ❗, “Not Available in ET” , “Signature error” and “Schema error” .

info

Note: This option only allows reprocessing documents that were sent through the exchange mailbox, the reception API, or manual upload (upload).

This reprocessing option can be found in the following path, as applicable:

• Inbox/Received/Options/Actions/Reprocess document without schema validation.
• Inbox/Received/Options/Actions/Reprocess document without signature validation.
• Inbox/Received/Options/Actions/Reprocess document.

Accompanied by a selector that, as its name indicates, will allow independently selecting an Electronic Document or a set of them.

Next, a pop-up window will be shown in which the user must confirm that they want to revalidate the previously selected documents.

Once the reprocessing has been generated, a banner will be shown at the top of the page indicating that the document(s) were sent for reprocessing:

and finally, for any of the three types of reprocessing generated through this option, the notes section will indicate:

• Records the email of the user who performed the document reprocessing.
• Generates a note “Document processed without schema validation” or “Document processed without signature validation”
• The document continues the reception validation flow.

This button allows reprocessing the different validations of the reception process:

2.1. Reprocess document without schema validation:

Allows the document to go through the reception validations without taking the schema validation into account; however, when selecting the document and applying this reprocessing without schema validation, the system:

• Records the email of the user who performed the document reprocessing.
• Generates a note “Document processed without schema validation”.
• The document continues the reception validation flow.

2.2. Reprocess document without signature validation:

Allows the document to go through the reception validations without taking the signature validation into account; however, when selecting the document and applying this reprocessing without signature validation, the system:

• Records the email of the user who performed the document reprocessing.
• Generates a note “Document processed without signature validation”.
• The document continues the reception validation flow.

2.3. Reprocess document:

Allows reprocessing the document from scratch and performs the reception validations again without skipping any validation; however, when selecting the document and applying this reprocessing, the system:

• Records the email of the user who performed the document reprocessing.
• Performs the reception validations without skipping any of them.

---

3. METHODS FOR SENDING AN XML

There are currently three methods for receiving documents into the system:

• Manual upload: Import of the XML file via the Upload option in Gosocket.
• Exchange mailbox: Automated inbound flow through the exchange mailbox.
• Reception API: Connection via API for integrated processing.

info

Enveloped documents:

Documents that arrive enveloped (that is, more than two documents in the same package) include the original document together with its respective signature. However, the "Certificate" node is declared only once for all the documents contained in the envelope.

Subsequently, the Gosocket platform performs an internal process: when the system separates the enveloped documents and generates a new XML for each one, it automatically adds the "Certificate" node to each individual file.

This way, signature validation can be performed on all tax documents.

3.1. Manual XML upload via Upload in Gosocket

Gosocket has a tool within the Inbox platform that allows the supplier to directly upload the XML file of their documents.

• Access path: Main menu > Upload > Manual Upload.

From this section, the user can select the XML file from their device's file explorer or, if preferred, drag and drop it directly into the interface.

Once the document is received, the solution automatically starts the processing and validation flow.

Once the XML file is received via the manual upload option, the following will be identified:

a. How many XML files in total were received, how many were processed successfully, and how many have errors.

b. By clicking the “Details” button, a pop-up will be shown with the “Error Details” identifying the possible errors that the XML file uploaded manually through this option may contain, and, if the document has no errors, a detail will be shown indicating that it was successfully uploaded to the Gosocket platform:

c. Finally, the document will be displayed in the Inbox received tray, with all the validations performed.

3.1.1. Considerations for manual XML upload

• Up to 100 XML files can be uploaded in a single upload.
• Schema, signature, and Tax Authority validations will be performed.
• The tax documents stipulated by the Tax Authority must be sent in XML format.

The tax documents that can be received are:

• Electronic Sales Invoice.
• Electronic export sales invoice.
• Credit Note.
• Debit Note.
• Electronic payroll.
• Support document.

3.2. Exchange mailbox

This is the process by which the supplier sends their XML files through an email mailbox. Each country has specific addresses assigned according to the work environment.

The mailboxes to be used, depending on the environment, are:

• Sandbox (Testing): co_ms_sbx@inbound.gosocket.com
• Production: co@recepcionprd.gosocket.net

info

3.2.1. Considerations for the exchange mailbox

It is important to keep the following points in mind when sending documents, as this will prevent them from being rejected by the application.

a. The tax documents that can be sent through the exchange mailbox are:

• Electronic Sales Invoice.
• Electronic export sales invoice.
• Credit Note.
• Debit Note.
• Electronic payroll.
• Support document.

b. The tax documents stipulated by the Tax Authority must be sent in XML format.

c. They can be sent individually or several XML files in the same email.

d. Several XML files can be sent compressed in a file, and only the .zip extension is allowed.

e. The XML or compressed (.zip) files must be attached to the email of the mailbox provided by Gosocket.

f. Attachments can be sent, such as the invoice's PDF or others as required.

g. The maximum weight allowed in an email that includes XML and PDF files is 20MB.

h. The solution is able to process the graphic representation PDFs, if included, and any attachments that arrive at the mailbox, where, once received, they are stored and associated with their respective document, allowing them to be downloaded within Inbox.

The process works as follows:

• If an XML document arrives at the exchange mailbox along with an additional PDF file with the same name, for example: Factura12345.xml and Factura12345.pdf, it is understood that the .pdf file is the graphic representation of the DTE, so it is synced that way in Gosocket and will be available for viewing.
• If an XML document arrives at the mailbox with more than one attachment of any extension, they are associated as attachments.

warning

Note: If there are PDF files with a name different from the XML, they will be considered attachments.

• For sending attachments, it is recommended to send each DTE with its attachments separately, since if more than one XML document arrives, only the storage of the graphic representation will be performed as long as the PDF file has the same name as the corresponding XML; the rest of the attachments will not be processed since there is no way to know which document to associate them with.
• Attachments can also be associated after the XML is sent; for example, if the XML is sent without attachments, another email with attachments (PDF, Excel, Word, etc.) can be sent afterward, and these will be associated with the previously sent document, as long as the second email also includes the XML.

3.3. Reception APIs

For the document reception process, Gosocket offers two APIs that allow sending XML files to the Gosocket platform:

3.3.1. UploadZipDocument:

This API allows sending a request that includes one or several XML and PDF files to Gosocket, packaged together in a compressed (.zip) file. Once received, the system processes the document, generates the corresponding record, and stores it securely on the platform.

a. Tracking Management

To carry out detailed tracking of the end-to-end processing of the PDF, from the moment the PDF enters the platform through the exchange mailbox until the supplier sends the XML and the PDF to Gosocket, this entire process is assigned two unique identifiers called "externalId" and "batchId".

b. Upload and storage

The API manages the reception of the .zip file, which must contain the PDF and its corresponding XML in Gosocket's native format for correct integration into the ecosystem.

This API allows the reception, processing, and storage of electronic documents on the Gosocket platform.

c. Post-storage processing actions

Once the document has been successfully stored in Inbox, the following actions can be performed:

• Reception validations (Automatic): Technical verification of standards compliance, including:

o   Schema validation.

o   Integrity of the document's Electronic Signature.

o   Validations with the corresponding Tax Authority: Indicates whether the document was accepted, rejected, or has validation errors from the regulatory body after the tax validation.

• Receiver message (Automatic): Application of receiver message events according to the tax authority's current regulations.
• Smart Supply Validations (On-demand configuration): Application of logic rules and approval workflows configured in the Smart Supply module.
• File Distribution (On-demand configuration): Once the document has been processed on the Gosocket platform, and based on the prior configuration of the distribution rules, the system executes the automated transfer of the files to the configured technical destinations. This functionality allows integration with various environments, such as:

o   Windows Servers.

o   File transfer protocols (SFTP / FTP).

o   Automated sending via email.

warning

You can find the configuration details of the Reception API at the following link: API Reception.zip - Generic

3.3.2. SendDocumentToUpload:

This API allows sending a request that includes a single XML to Gosocket. Once received, the system processes the document, generates the corresponding record, and stores it securely on the platform.

a. Upload and storage

The API manages the reception of the file in XML format for its integration into the Gosocket ecosystem:

• Ingestion: Uploads the document directly into Gosocket's Inbox module through the endpoint: POST - SendDocumentToUpload
• Persistence: Ensures the storage of the XML file on the platform's servers for subsequent management.

b. Tracking Management

The successful execution of the API generates a unique identifier called trackId. This value is returned in the response and is essential for:

• Carrying out detailed tracking of the processing status.
• Checking the upload result through the endpoint: GET- GetDocumentUploadStatus

c. Post-storage processing actions

Once the document has been successfully stored in Inbox, the following actions can be performed:

• Reception validations (Automatic): Technical verification of standards compliance, including:

o   Schema validation.

o   Integrity of the document's Electronic Signature.

o   Validations with the corresponding Tax Authority: Indicates whether the document was accepted, rejected, or has validation errors from the regulatory body after the tax validation.

• Receiver message (Automatic): Application of receiver message events according to the tax authority's current regulations.
• Smart Supply Validations (On-demand configuration): Application of logic rules and approval workflows configured in the Smart Supply module.
• File Distribution (On-demand configuration): Once the document has been processed on the Gosocket platform, and based on the prior configuration of the distribution rules, the system executes the automated transfer of the files to the configured technical destinations. This functionality allows integration with various environments, such as:

o   Windows Servers.

o   File transfer protocols (SFTP / FTP).

o   Automated sending via email.

warning

You can find the configuration details of the Reception API at the following link: Reception API

---

4. COMMERCIAL ACKNOWLEDGMENTS

The commercial acknowledgment aims to validate tax documents with the Tax Authority, and as a result, we will have a status change within our received documents tray in the Gosocket Inbox.

By using these events, the receiver reports the receipt, acceptance, or rejection of each document.

These events can be generated from two different points in Inbox, which we will explore below.

Currently there are 4 commercial acknowledgments for received documents:

a. Acknowledgment of receipt of the Electronic Sales Invoice.

b. Express acceptance.

c. Receipt of goods or service.

d. Claim on the Electronic Sales Invoice.

Once the documents have been received in Inbox and have passed the reception validations, Gosocket allows commercial acknowledgments to be applied as follows:

4.1. Receiving commercial acknowledgments through the exchange mailbox

4.2. Manually issue the commercial acknowledgment for these documents.

4.1. Receiving commercial acknowledgments through the exchange mailbox

To receive commercial acknowledgments through the exchange mailbox, the file must strictly comply with the specific structure required by the TA and be in XML format.

<ApplicationResponse
xmlns="urn:oasis:names:specification:ubl:schema:xsd:ApplicationResponse-2"
xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2"
xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2"
xmlns:ext="urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2"
xmlns:sts="dian:gov:co:facturaelectronica:Structures-2-1"
xmlns:xades="http://uri.etsi.org/01903/v1.3.2#"
xmlns:xades141="http://uri.etsi.org/01903/v1.4.1#"
xmlns:xs="http://www.w3.org/2001/XMLSchema">
<ext:UBLExtensions>
...
</ext:UBLExtensions>
<cbc:UBLVersionID>UBL 2.1</cbc:UBLVersionID>
<cbc:CustomizationID>1</cbc:CustomizationID>
<cbc:ProfileID>DIAN 2.1: ApplicationResponse de la Factura Electrónica de Venta</cbc:ProfileID>
<cbc:ProfileExecutionID>1</cbc:ProfileExecutionID>
<cbc:ID>0000000000000000000</cbc:ID>
<cbc:UUID schemeID="1" schemeName="CUDE-SHA384">000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000</cbc:UUID>
<cbc:IssueDate>2026-06-30</cbc:IssueDate>
<cbc:IssueTime>15:14:00-05:00</cbc:IssueTime>
<cbc:Note>OK</cbc:Note>
<cac:SenderParty>
...
</cac:SenderParty>
<cac:ReceiverParty>
...
</cac:ReceiverParty>
<cac:DocumentResponse>
<cac:Response>
<cbc:ResponseCode>030</cbc:ResponseCode>
<cbc:Description>Acuse de recibo de Factura Electrónica de Venta</cbc:Description>
</cac:Response>
<cac:DocumentReference>
<cbc:ID>FV0000</cbc:ID>
<cbc:UUID schemeName="CUFE-SHA384">000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000</cbc:UUID>
<cbc:DocumentTypeCode>01</cbc:DocumentTypeCode>
</cac:DocumentReference>
<cac:IssuerParty>
<cac:Person>
...
</cac:Person>
</cac:IssuerParty>
</cac:DocumentResponse>
</ApplicationResponse>

<ApplicationResponse
xmlns="urn:oasis:names:specification:ubl:schema:xsd:ApplicationResponse-2"
xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2"
xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2"
xmlns:ext="urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2"
xmlns:sts="dian:gov:co:facturaelectronica:Structures-2-1"
xmlns:xades="http://uri.etsi.org/01903/v1.3.2#"
xmlns:xades141="http://uri.etsi.org/01903/v1.4.1#"
xmlns:xs="http://www.w3.org/2001/XMLSchema">
<ext:UBLExtensions>
...
</ext:UBLExtensions>
<cbc:UBLVersionID>UBL 2.1</cbc:UBLVersionID>
<cbc:CustomizationID>1</cbc:CustomizationID>
<cbc:ProfileID>DIAN 2.1: ApplicationResponse de la Factura Electrónica de Venta</cbc:ProfileID>
<cbc:ProfileExecutionID>1</cbc:ProfileExecutionID>
<cbc:ID>0000000000000000000</cbc:ID>
<cbc:UUID schemeID="1" schemeName="CUDE-SHA384">000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000</cbc:UUID>
<cbc:IssueDate>2026-06-30</cbc:IssueDate>
<cbc:IssueTime>15:14:00-05:00</cbc:IssueTime>
<cbc:Note>OK</cbc:Note>
<cac:SenderParty>
...
</cac:SenderParty>
<cac:ReceiverParty>
...
</cac:ReceiverParty>
<cac:DocumentResponse>
<cac:Response>
<cbc:ResponseCode>032</cbc:ResponseCode>
<cbc:Description>Recibo del bien y/o prestación del servicio</cbc:Description>
</cac:Response>
<cac:DocumentReference>
<cbc:ID>FV0000</cbc:ID>
<cbc:UUID schemeName="CUFE-SHA384">000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000</cbc:UUID>
<cbc:DocumentTypeCode>01</cbc:DocumentTypeCode>
</cac:DocumentReference>
<cac:IssuerParty>
<cac:Person>
...
</cac:Person>
</cac:IssuerParty>
</cac:DocumentResponse>
</ApplicationResponse>

<ApplicationResponse
xmlns="urn:oasis:names:specification:ubl:schema:xsd:ApplicationResponse-2"
xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2"
xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2"
xmlns:ext="urn:oasis:names:specification:ubl:schema:xsd:CommonExtensionComponents-2"
xmlns:sts="dian:gov:co:facturaelectronica:Structures-2-1"
xmlns:xades="http://uri.etsi.org/01903/v1.3.2#"
xmlns:xades141="http://uri.etsi.org/01903/v1.4.1#"
xmlns:xs="http://www.w3.org/2001/XMLSchema">
<ext:UBLExtensions>
...
</ext:UBLExtensions>
<cbc:UBLVersionID>UBL 2.1</cbc:UBLVersionID>
<cbc:CustomizationID>1</cbc:CustomizationID>
<cbc:ProfileID>DIAN 2.1: ApplicationResponse de la Factura Electrónica de Venta</cbc:ProfileID>
<cbc:ProfileExecutionID>1</cbc:ProfileExecutionID>
<cbc:ID>0000000000000000000</cbc:ID>
<cbc:UUID schemeID="1" schemeName="CUDE-SHA384">000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000</cbc:UUID>
<cbc:IssueDate>2026-06-30</cbc:IssueDate>
<cbc:IssueTime>15:14:00-05:00</cbc:IssueTime>
<cbc:Note>OK</cbc:Note>
<cac:SenderParty>
...
</cac:SenderParty>
<cac:ReceiverParty>
<cac:PartyTaxScheme>
...
</cac:PartyTaxScheme>
<cac:Contact>
...
</cac:Contact>
</cac:ReceiverParty>
<cac:DocumentResponse>
<cac:Response>
<cbc:ResponseCode>033</cbc:ResponseCode>
<cbc:Description>Aceptación expresa</cbc:Description>
</cac:Response>
<cac:DocumentReference>
...
</cac:DocumentReference>
</cac:DocumentResponse>
</ApplicationResponse>

This XML file, which contains the structure of the commercial acknowledgment, must be sent once the invoice is already registered in Inbox, sending it to the same reception mailbox.

Once the acknowledgment is received through this channel, it can be viewed as an attached file within the Attachments section in the document preview, as follows:

4.2. Manually issue the commercial acknowledgment for these documents.

These commercial events can be generated manually from two different points in Inbox, which we will explore below:

4.2.1. Options Button (Received Documents)

**1.**To access this option and manually generate the commercial acknowledgment required for the document(s), in Inbox you must select the documents to be managed using the checkbox or selector.

**2.**Now, you must select the “Options” button and look for the “Commercial acknowledgment” section, located at: Inbox / Received Tray / Options Button / Section: commercial acknowledgment, Within this menu, you will find the following Commercial Acknowledgment options:

• Acknowledgment of receipt of the Electronic Sales Invoice.
• Express acceptance: This option can only be used once an acknowledgment of receipt of goods or services has been issued.
• Receipt of goods or service rendered.
• Claim on the Electronic Sales Invoice.

When entering any of the acknowledgments, a pop-up window will be shown with a form to leave a comment. You can also enter an additional email so that a copy of the Acknowledgment is sent, and, in the case of the claim acknowledgment, a list of rejection types.

This event will be shown within the document preview in the notes section, and the XML of the event sent to the Tax Authority will be shown:

and in the attachments section, as shown below:

---

4.2.2. Applying commercial acknowledgments from the document preview

These events can also be generated from the Inbox document preview, which we will explore below.

This action can also be performed from the document preview using the Commercial acknowledgment button.

4.2.3. Icons according to the commercial acknowledgment

According to the commercial acknowledgment previously assigned, the document may show one of the following icons when viewed from Received:

1. Acknowledgment of receipt of the document: This status indicates the issuance of the acknowledgment on a document, which can be shown in two scenarios:

a.   Gray, shown when the document does not yet have a commercial acknowledgment.

b.   Green, which indicates that the acknowledgment was issued successfully.

2. Receipt event for goods or service: This status shows the Receipt of Goods or Service event, and if this event is not present, the icon will be gray.

3. Acceptance or claim of the document:  For acceptance, whether express or tacit, an icon with a hand pointing up in green will be shown; if rejected, an icon with a hand pointing down in red will be shown; if this event is not present, the hand will be gray.

warning

For more details on running commercial acknowledgments from the API available in this section, see the Inbox and API Manual.

---

5. QUERYING RECEIVED DOCUMENTS FROM GOSOCKET

Once the documents have been processed by the reception service, they can be queried from the Gosocket portal under Inbox/Received. **

This section shows the following screen:

**1.**Filters section to optimize the search results. **

**2.**Sort order control, which allows you to change how the search results are displayed. **

**3.**List of options related to export, commercial responses, and internal movements of the Electronic Documents. **

**4.**Display section with the search result details and representative icons for the most relevant status changes. **

warning

* For more information on these points, see the Inbox documentation.**

Once the document search is performed in the main grid, the list of received documents that met the established search criteria will be shown; in this grid, in addition to relevant document information, the document status can be observed.

**1.**Tax authority validation.

**2.**Distribution validation.

**3.**Smart Supply status validation.

**4.**Acknowledgment of receipt

**5.**Approved goods receipt

**6.**Customer accepted, Customer rejected

In the status column (1), the result of the applied validations will be shown, as explained in the XML reception process section.

Icon	Status	Validation
	VALIDATED	Document approved by the TA
	REJECTED*	Document rejected by the TA
	Not Available in ET	Document does not exist in the TA
❗	ERROR*	Document rejected or internal exception from Gosocket
	ALERT*	The recipient's NIT contains a check digit. As a result, commercial events cannot be applied to the document.
	Signature Error	Document with signature error
	Schema Error	Document with schema error
	Schema error but flow continues *	The XML has a schema error, but if this configuration is enabled, this option allows the reception flow to continue.

* Note: Clicking on the document will open the document preview where you can review the notes related to the reason for rejection.

* Note: for the case where the document remains in “ERROR” status, the user can reprocess it through the actions, in order to perform the schema, signature, or TA validations again. This process is explained in detail in the section “Reprocessing”.

* Note: Document has an update with the TA: The recipient's NIT contains a check digit

“The recipient's NIT contains a check digit”, its status changes to ALERT and it will be assigned the icon , which will indicate that commercial events CANNOT be applied to the document.

and in the document's Notes section the record will be left with the corresponding description:

* Note: Special configuration: The XML has a schema error, but if this configuration is enabled, this option allows the reception flow to continue:

This feature can be enabled independently for each company. Its purpose is that, if a schema error is detected in the XML when the document is received in Gosocket, the specific error detail will be automatically recorded in the document's "Notes" section.

Despite this finding, the document will continue its normal flow toward the following reception validations, such as the signature and tax authority verification.

The document will remain in Inbox as follows:

In Gosocket, the document will be in Validated by TA with schema error status and the orange icon will be shown, as follows:

For more details on how to configure this functionality, see the following section: XML Configuration Presents Schema Errors and Reception Flow Continues

---
